Protocol eras

The 2026-07-28 revision of MCP made substantial changes to the protocol. The Inspector therefore treats protocol era (legacy or modern, meaning before or as of that revision) as a first-class, per-server setting, orthogonal to the transport: the same HTTP URL can be inspected as a legacy server or as a modern one. Several tabs render meaningfully different UI and traffic depending on which era is in effect.

The `Protocol Era` setting

Each server carries a protocolEra of legacy, auto, or modern. In the web client it lives in Server Settings; in a catalog or config file it is the protocolEra field; in the CLI and TUI it comes from that same file.

Era	What the Inspector does at connect
`legacy`	The default. Plain `initialize`, no probing at all.
`auto`	Probe `server/discover` first, and fall back to `initialize` on any non-modern outcome.
`modern`	Pin exactly `2026-07-28`. No fallback, so a non-modern server fails loudly.

Why legacy is the default, and not auto. A debugging tool must not auto-probe. A server/discover probe stalls against silent legacy stdio servers, and it pollutes the recorded transcript you came here to read. Opting into auto or modern is a deliberate act, so what you see in the Protocol tab is what your server would have seen from a client behaving the way you configured.

Era selection works the same way in all three clients. Once connected, the negotiated era is reported in the connection header and in Connection Info. On a modern connection, server/discover also supplies capabilities (including extensions), instructions, and the list of supportedVersions. The server’s name and version arrive in the result _meta under io.modelcontextprotocol/serverInfo.

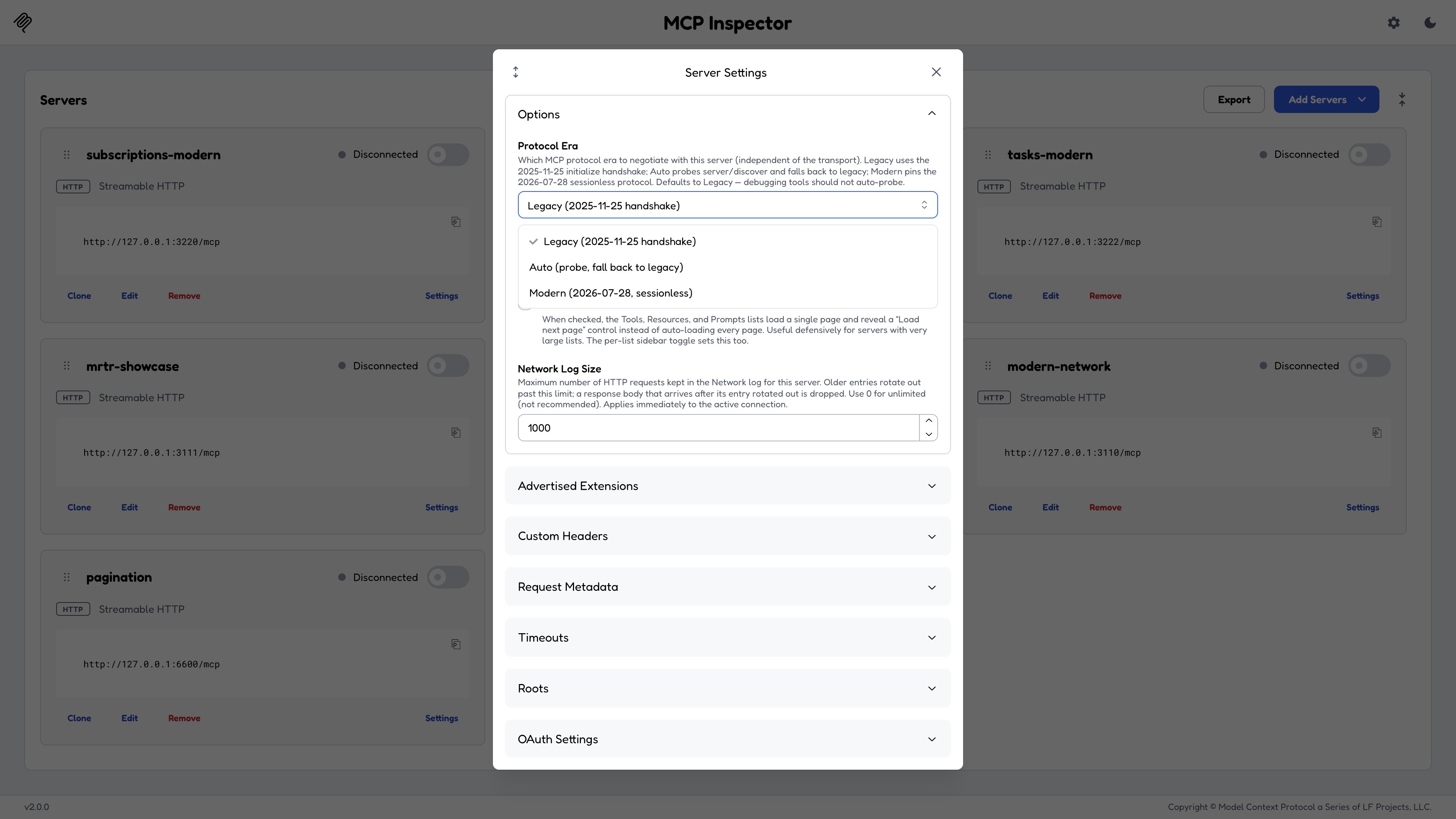

Server Settings: the Protocol Era selector, with all three choices.

Reproducing each era locally

Every section below ends with a Reproduce with … pointer to a JSON config for one of the composable test servers shipped in the Inspector repository. Clone the repo, build the test servers, then point the Inspector at the config the section names.

git clone https://github.com/modelcontextprotocol/inspector
cd inspector && npm install && npm run build
cd clients/web && npm run test-servers:build

Logging

Legacy
Modern

Logging is session-scoped. The client sends logging/setLevel once, and the server emits notifications/message at or above that level for the rest of the session.The Logs tab shows a Set Active Level selector plus a Set button. Choose a level, click Set, and subsequent server logs stream into the panel.Reproduce with test-servers/configs/logging-legacy-http.json.

logging/setLevel is gone. Instead the client opts in per request, by stamping _meta["io.modelcontextprotocol/logLevel"] on each outgoing request. A server MUST NOT emit notifications/message for a request that did not opt in.The Logs tab therefore shows a Log Level per Request control instead. Pick a level and every subsequent request carries the stamp, visible in the Network tab’s request body. Logs emitted while handling a request ride that request’s SSE response stream.Set the control to Off and the logLevel key is omitted entirely, so the same tool call produces no logs at all. That silence is correct behavior, not a bug.The per-server default is debug (opted in at the most verbose level, since the Inspector is a debugging tool); set modernLogLevel: "off" on a server to opt back out by default.Reproduce with test-servers/configs/logging-modern-http.json.

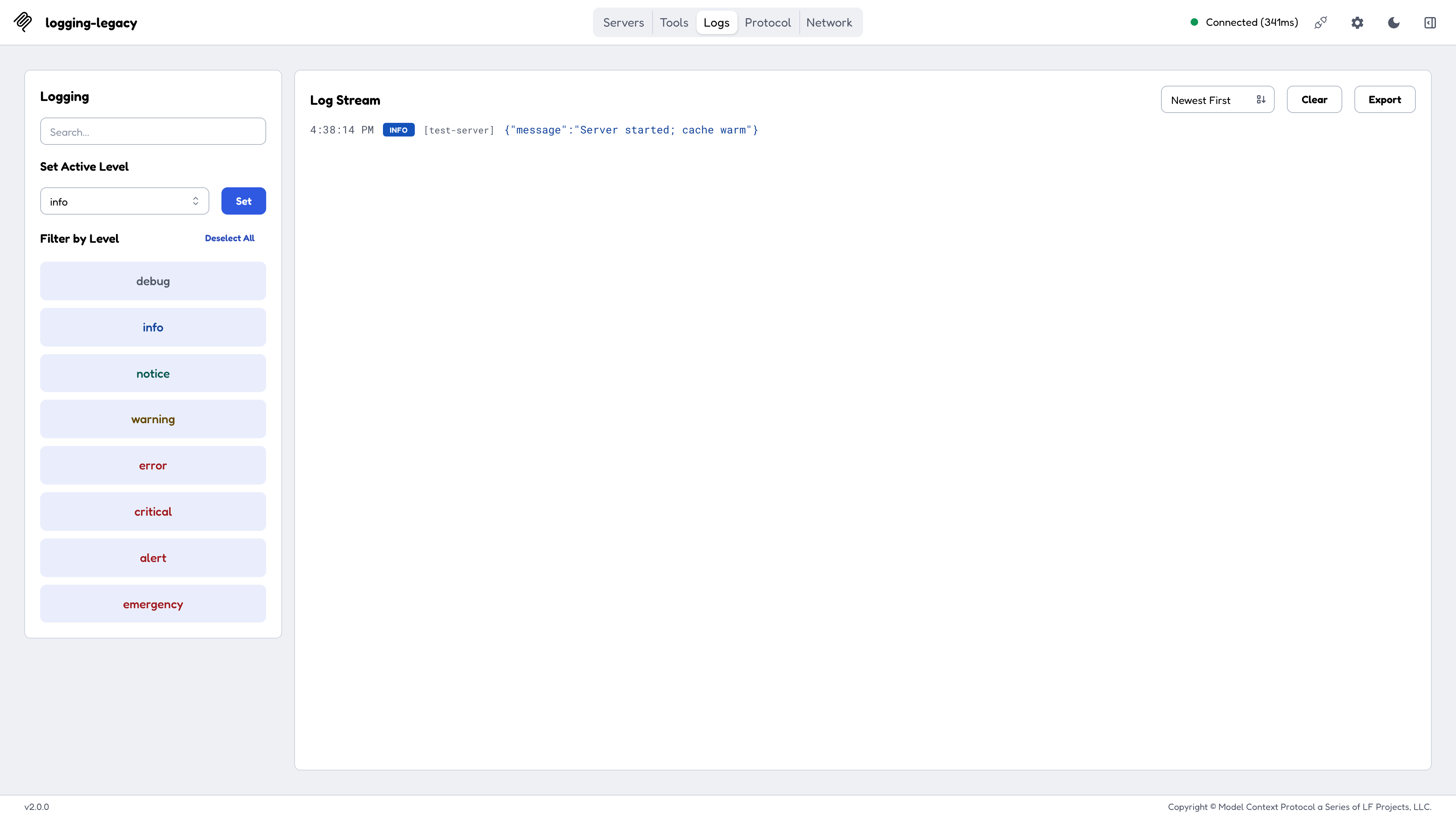

Legacy: the Logs tab offers a session-scoped Set Active Level control, and a log arrives after calling send_notification.

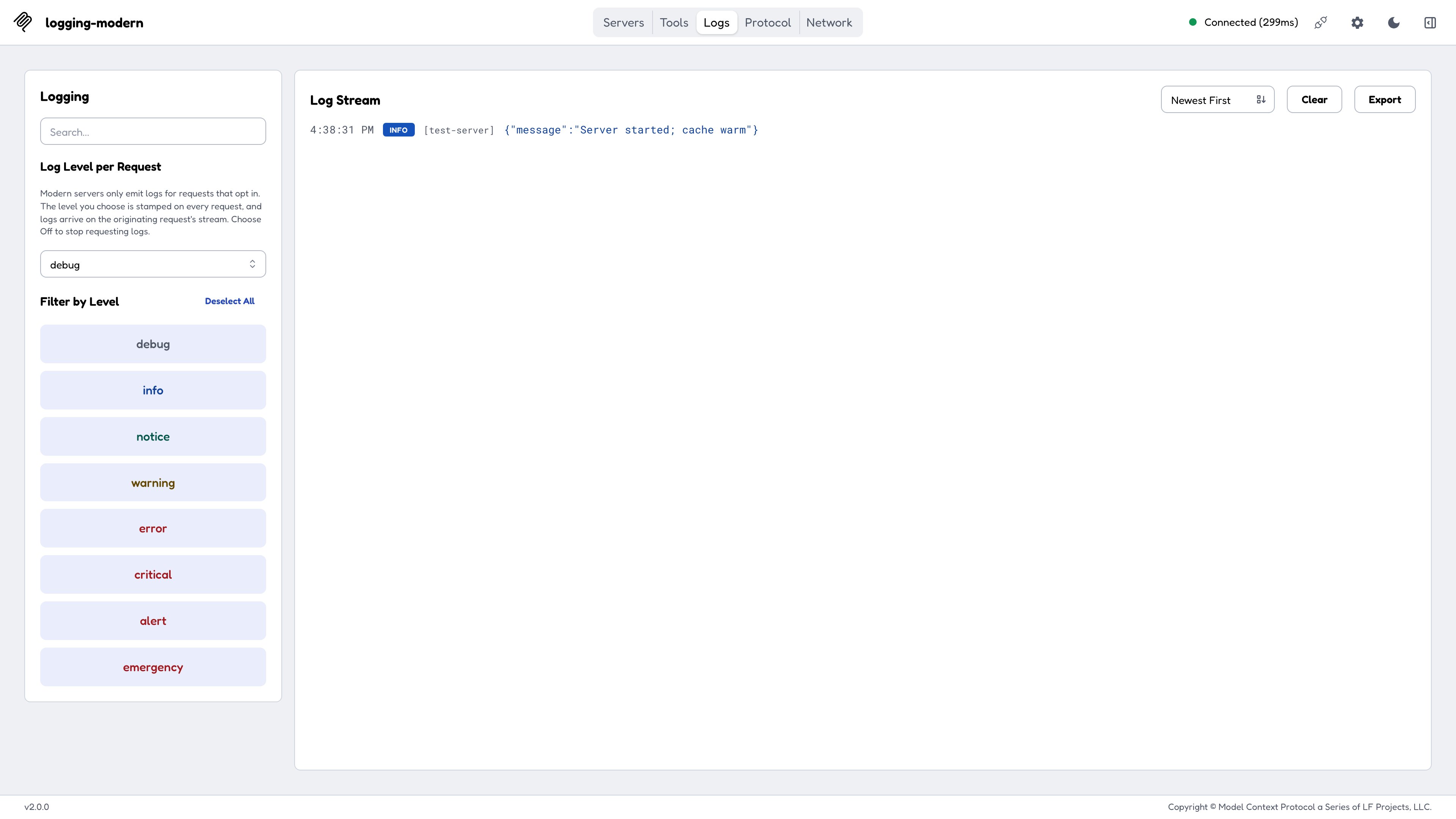

Modern: the same tab instead offers Log Level per Request. The level is stamped on every outgoing request, and the log rides that request's stream.

Resource subscriptions

Legacy
Modern

Clicking Subscribe on a resource sends resources/subscribe. The Subscriptions section lists the URI with no stream chrome. When the resource changes, the server emits notifications/resources/updated and the subscribed tile’s last-updated time is stamped.Reproduce with test-servers/configs/subscriptions-legacy-http.json, which also serves an update_resource tool so you can drive the notification round-trip yourself.

The same Subscribe button instead sends subscriptions/listen, with a filter carrying resourceSubscriptions plus the resourcesListChanged opt-in. The subscription is confirmed when the server sends notifications/subscriptions/acknowledged.Because the subscription is now a long-lived stream rather than a session flag, the Subscriptions section grows a stream-status badge in its header that moves from Connecting... to Listening. If the stream drops, the Inspector reconnects by re-sending subscriptions/listen.Reproduce with test-servers/configs/subscriptions-modern-http.json.

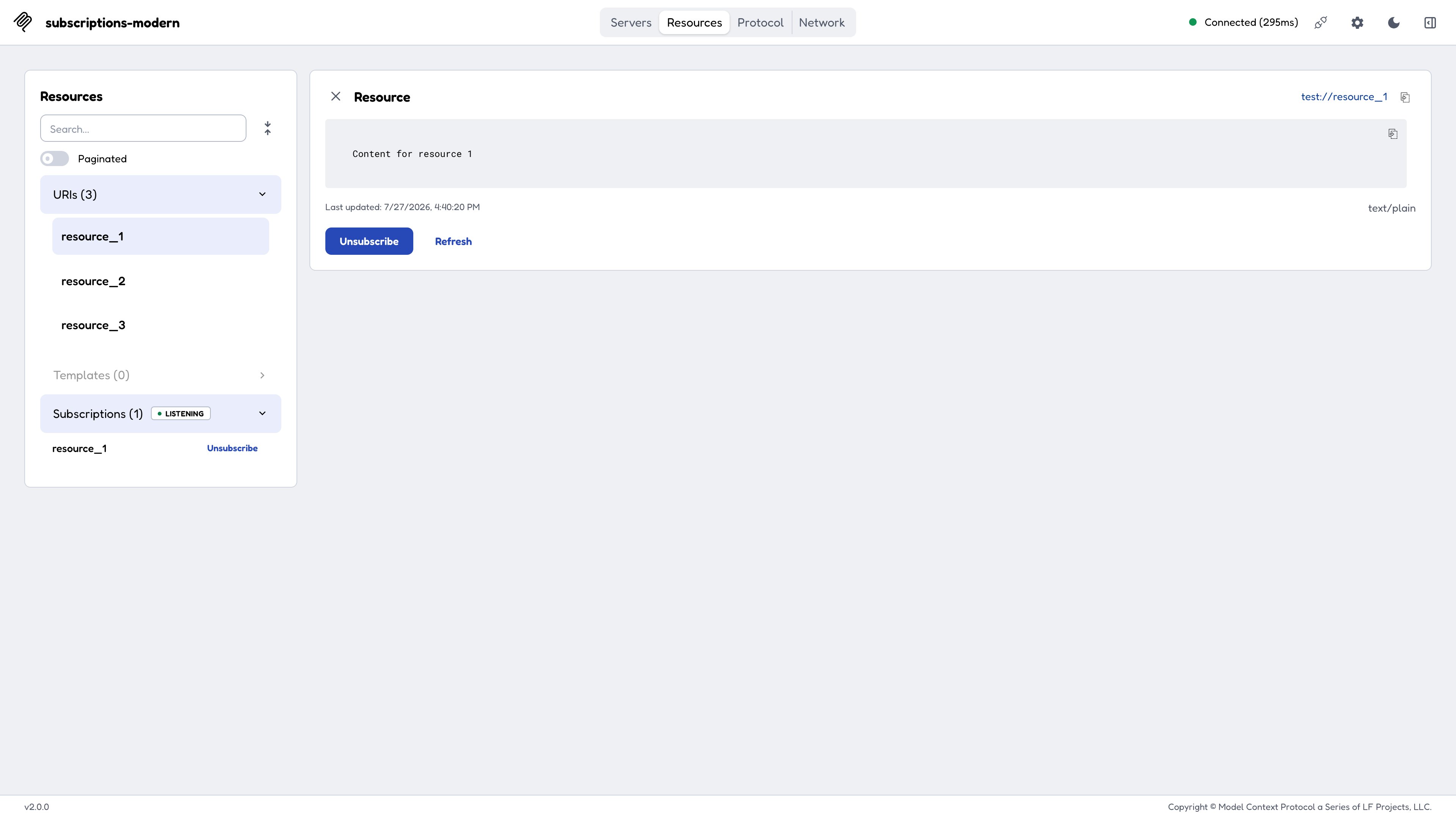

A modern subscription: the Subscriptions section carries a LISTENING stream-status badge that a legacy subscription has no need for.

Tasks

Tasks change the most between protocol eras, including how the Inspector UI tab is gated.

Legacy
Modern

The Tasks tab appears when the server advertises capabilities.tasks. Run a tool with Run as task enabled and the tab lists it, populated by tasks/list and polled with tasks/get. The completed payload is fetched with a blocking tasks/result, and Cancel sends tasks/cancel.Reproduce with test-servers/configs/tasks-legacy-http.json.

Tasks are an extension (io.modelcontextprotocol/tasks, SEP-2663), so the tab is gated on the negotiated extension rather than on capabilities.tasks.Run a tool as a task and tools/call returns a CreateTaskResult (resultType: "task", visible in the Protocol and Network tabs). The Inspector polls tasks/get only; there is no tasks/list, so Refresh re-polls the handles the client already knows about. A completed task inlines its result, with no blocking tasks/result call.A task that needs more information moves to input_required and surfaces an embedded elicitation in the pending-request modal (the dialog the web client opens whenever a request is waiting on you). Answering it sends tasks/update carrying the inputResponses, and the next poll completes.Reproduce with test-servers/configs/tasks-modern-http.json (tools modern_task and modern_input_task).

Legacy: the Tasks tab is populated from tasks/list, and the payload is fetched with a blocking tasks/result.

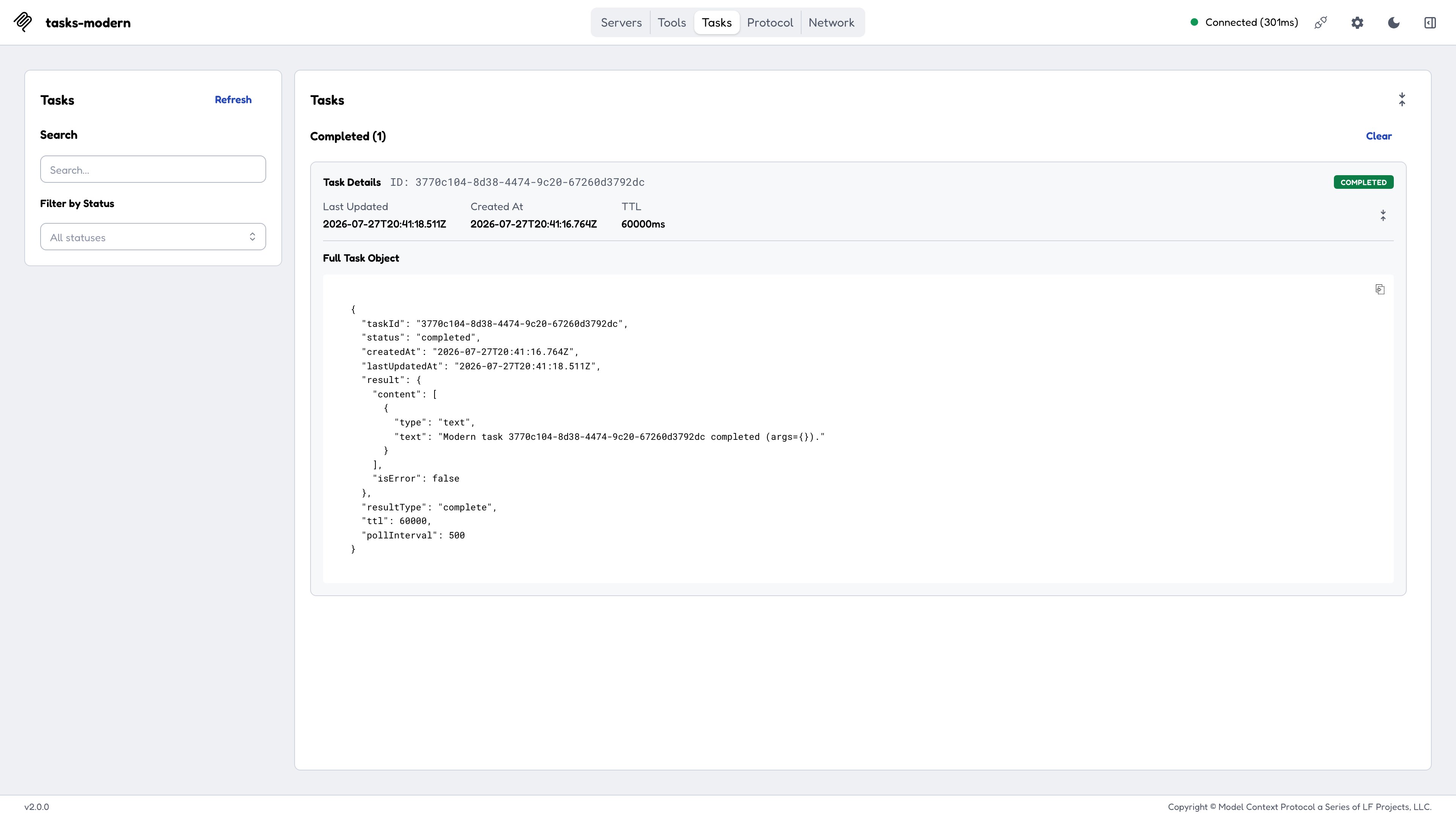

Modern: the client polls tasks/get on handles it already holds, and the completed task inlines its result; note resultType: complete in the full task object.

Multi-round tool results (MRTR)

On the modern era a tool can return input_required instead of a final result, embedding an elicitation, a sampling request, or a roots/list request. The client answers that embedded request and retries the tools/call under a fresh JSON-RPC id until the call reaches complete. The Inspector drives MRTR manually, so each round pauses at the pending-request modal, tagged input_required, for you to answer. The Protocol view groups the whole exchange as one MRTR conversation rather than as unrelated calls. test-servers/configs/mrtr-showcase-http.json bundles every shape in one modern server:

Tool	What it exercises
`mrtr_confirm`	A single elicitation round.
`mrtr_two_step`	Two elicitation rounds, threaded through `requestState`.
`mrtr_sample`	An embedded sampling request, routed to the Sampling panel.
`mrtr_roots`	An embedded `roots/list`, answered silently from configured roots (no modal).
`mrtr_edge`	An `inputRequests`-only round, then a `requestState`-only round.
`mrtr_loop`	Never completes, so the client stops at its `MRTR_MAX_ROUNDS` limit.

The legacy collect_elicitation pattern (a server calling server.elicitInput) errors on a 2026-07-28 connection, because server-to-client requests aren’t allowed there. MRTR is its modern replacement.

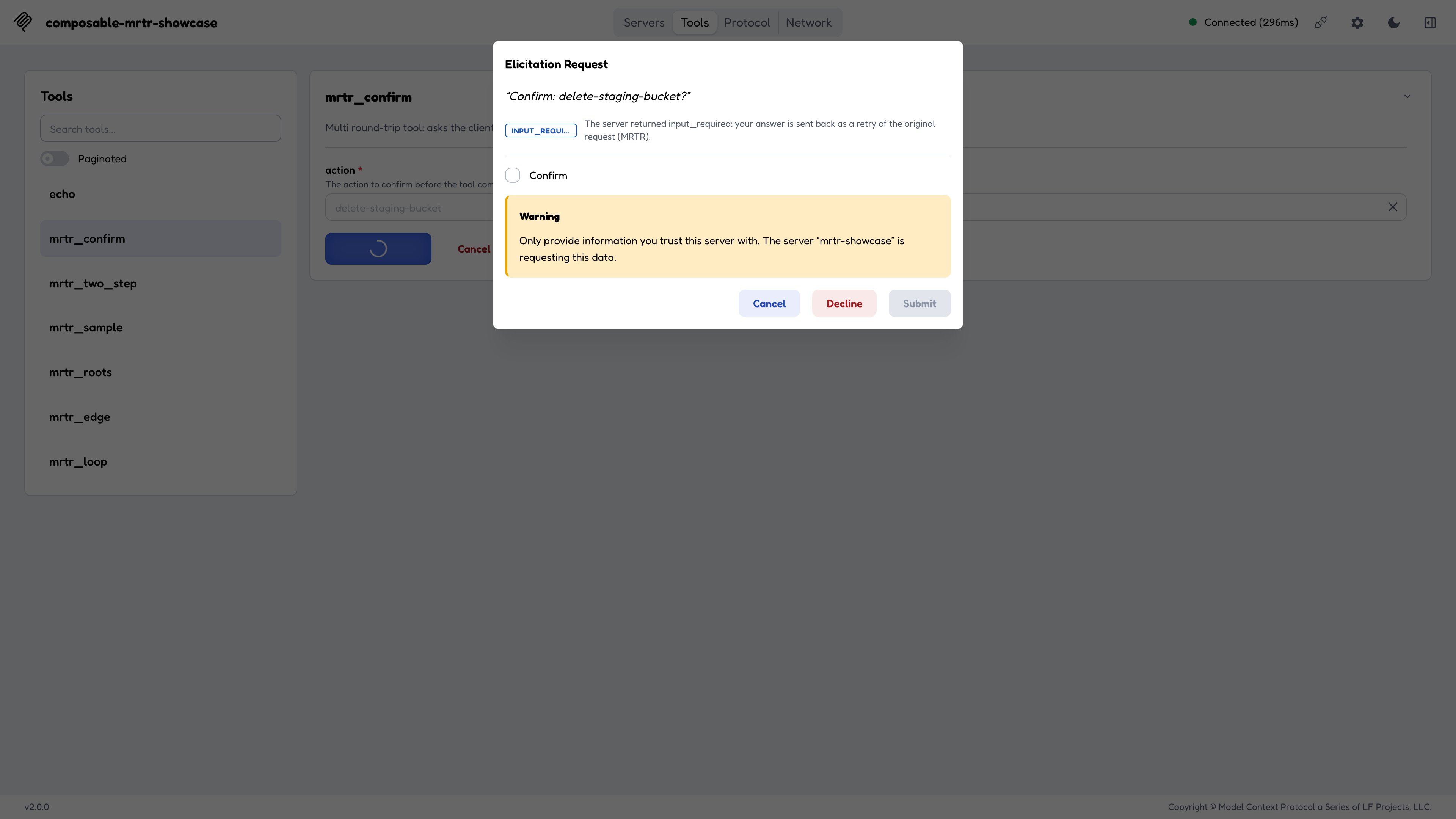

An MRTR round paused at the pending-request modal, tagged input_required. Answering it retries the original request.

Tools: mirrored headers and excluded tools

SEP-2243 lets a tool annotate an argument with x-mcp-header, asking a Streamable HTTP client to mirror that argument’s value into an Mcp-Param-* request header. The Inspector surfaces both halves of that contract in the Tools tab:

A tool with a valid annotation shows a “Mirrored request headers (SEP-2243)” section in its detail panel, for example city -> Mcp-Param-City.
A tool with an invalid annotation (say, a header name of "Bad Header", where the space makes it an invalid RFC 9110 token) appears struck through in the sidebar under an “Excluded (SEP-2243)” divider, with the reason on hover. A conforming client MUST drop such a tool from tools/list; the Inspector shows you why it was dropped instead of silently hiding it.

Reproduce with test-servers/configs/xmcpheader-modern-http.json.

Mcp-Param-* mirroring is skipped by the SDK in the browser. Calling a mirrored tool from the web client omits the header, so a strict server answers -32020 (HeaderMismatch, see the error taxonomy below). The same tool called from the CLI or TUI, which both run on Node, mirrors correctly. The header is dropped by an environment check inside the SDK, outside the Inspector’s control.

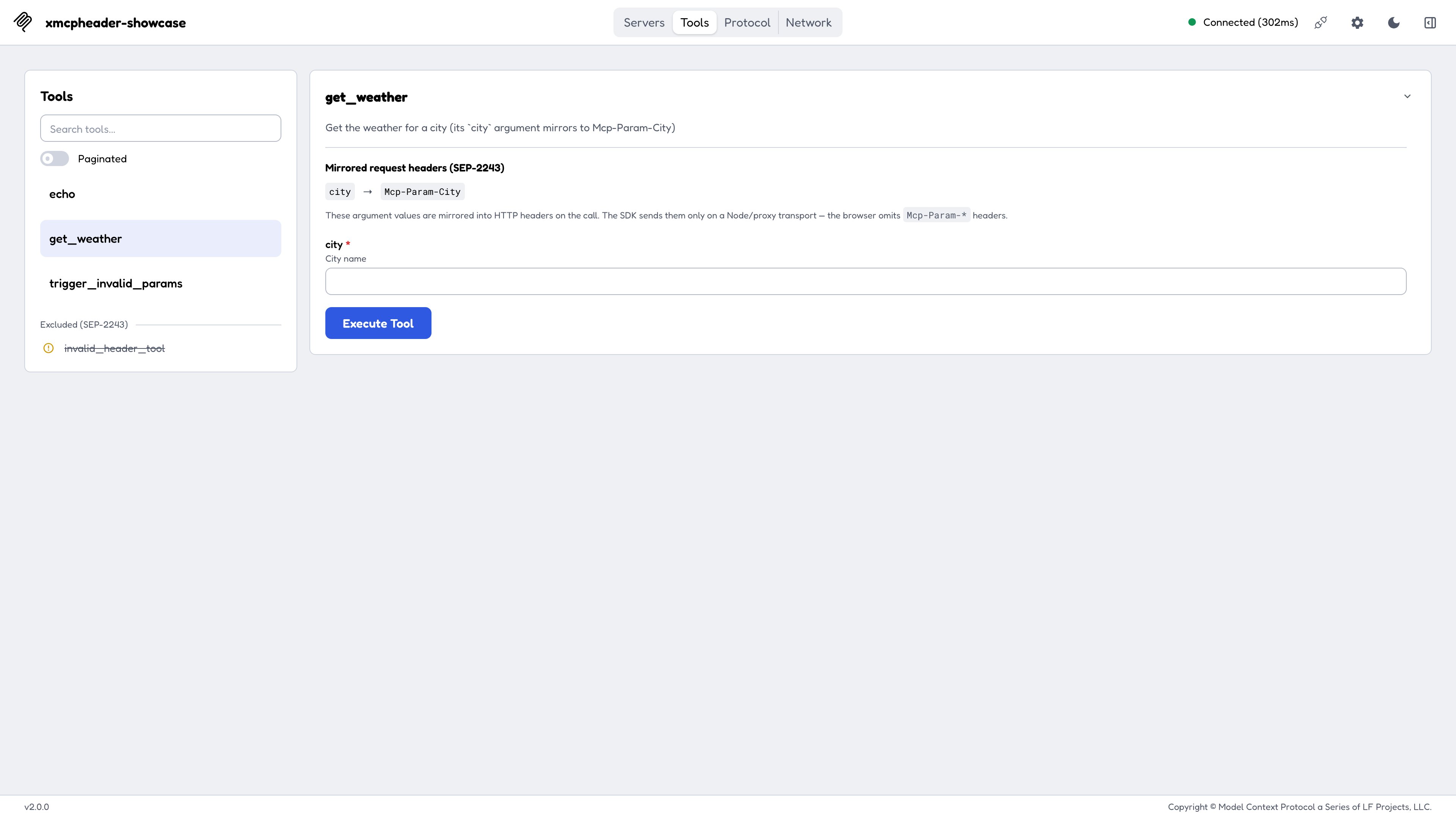

get_weather shows its mirrored city -> Mcp-Param-City header, while invalid_header_tool is struck through under the Excluded (SEP-2243) divider.

`-32602` error panels

Under the modern era a tools/call that rejects with -32602 renders as a distinct error panel:

Unknown Tool: when the message names a tool the server does not list. Reproduce by calling any name absent from the server’s tools/list.
Invalid Parameters: any other -32602. Reproduce with the trigger_invalid_params tool in the config above.

Both eras reject with -32602; only the Inspector’s presentation changes. On a legacy connection you get one generic JSON-RPC failure and have to read the message to tell which case you hit.

Network and Protocol: headers and the error taxonomy

The modern era standardizes a set of Mcp-* HTTP headers and introduces a richer JSON-RPC error taxonomy (SEP-2243 / SEP-2575). The two monitoring tabs divide the work:

The Network tab is the HTTP view: mirrored Mcp-* headers are highlighted and sentinel values decoded.
The Protocol tab is the JSON-RPC view: each spec error renders distinctly rather than as a generic failure.

test-servers/configs/modern-network-http.json serves four tools that produce a real HTTP status plus a JSON-RPC error body, one per class:

Tool	HTTP	JSON-RPC code	Meaning
`trigger_header_mismatch`	`400`	`-32020`	A required mirrored header was missing or wrong.
`trigger_missing_capability`	`400`	`-32021`	The request omitted a client capability the server requires.
`trigger_unsupported_version`	`400`	`-32022`	Unsupported version; supported versions in `data.supported`.
`trigger_method_not_found`	`404`	`-32601`	Method not found.

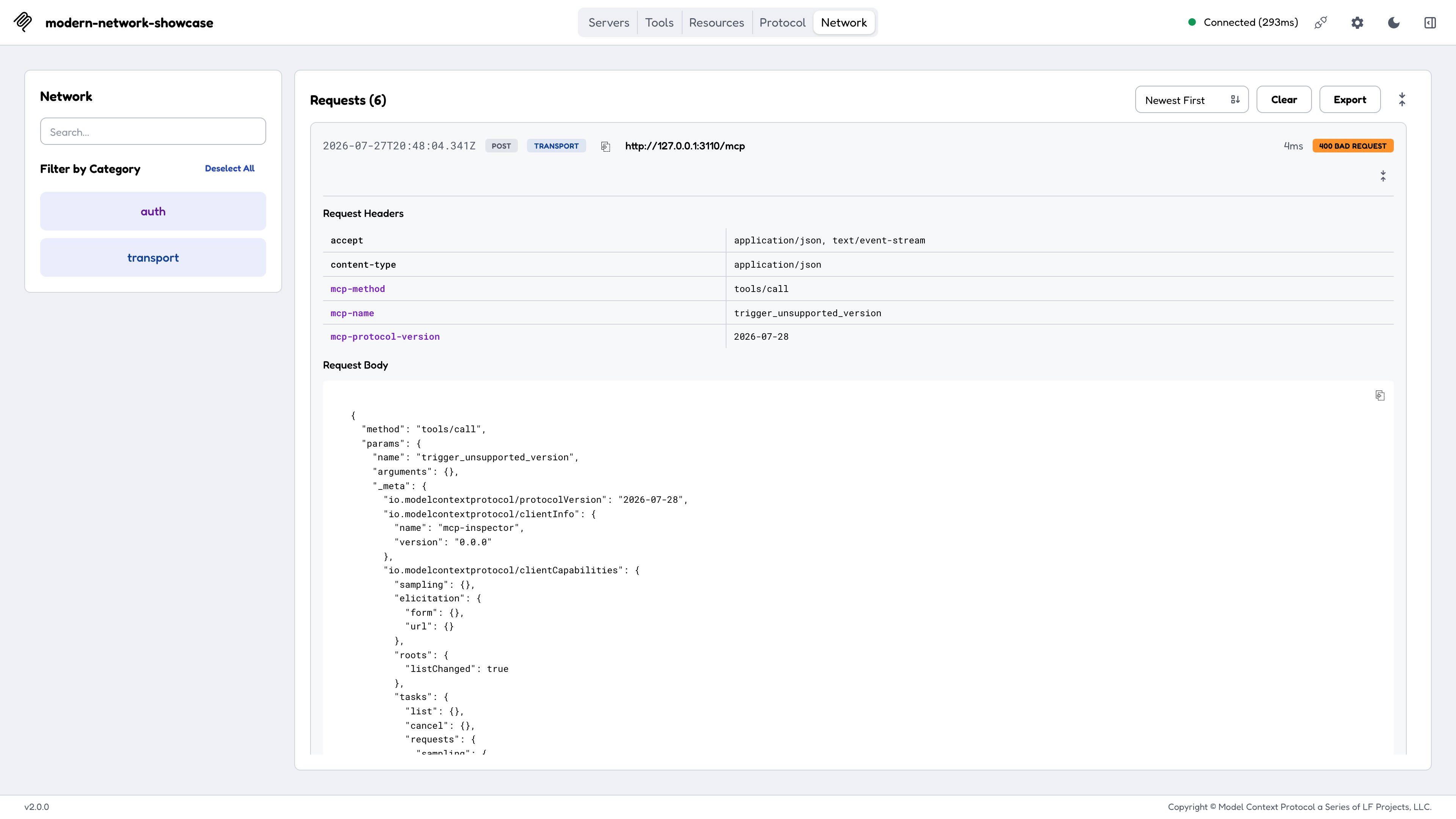

The Network tab shows the HTTP layer; here, the 400 Bad Request the strict server answered with.

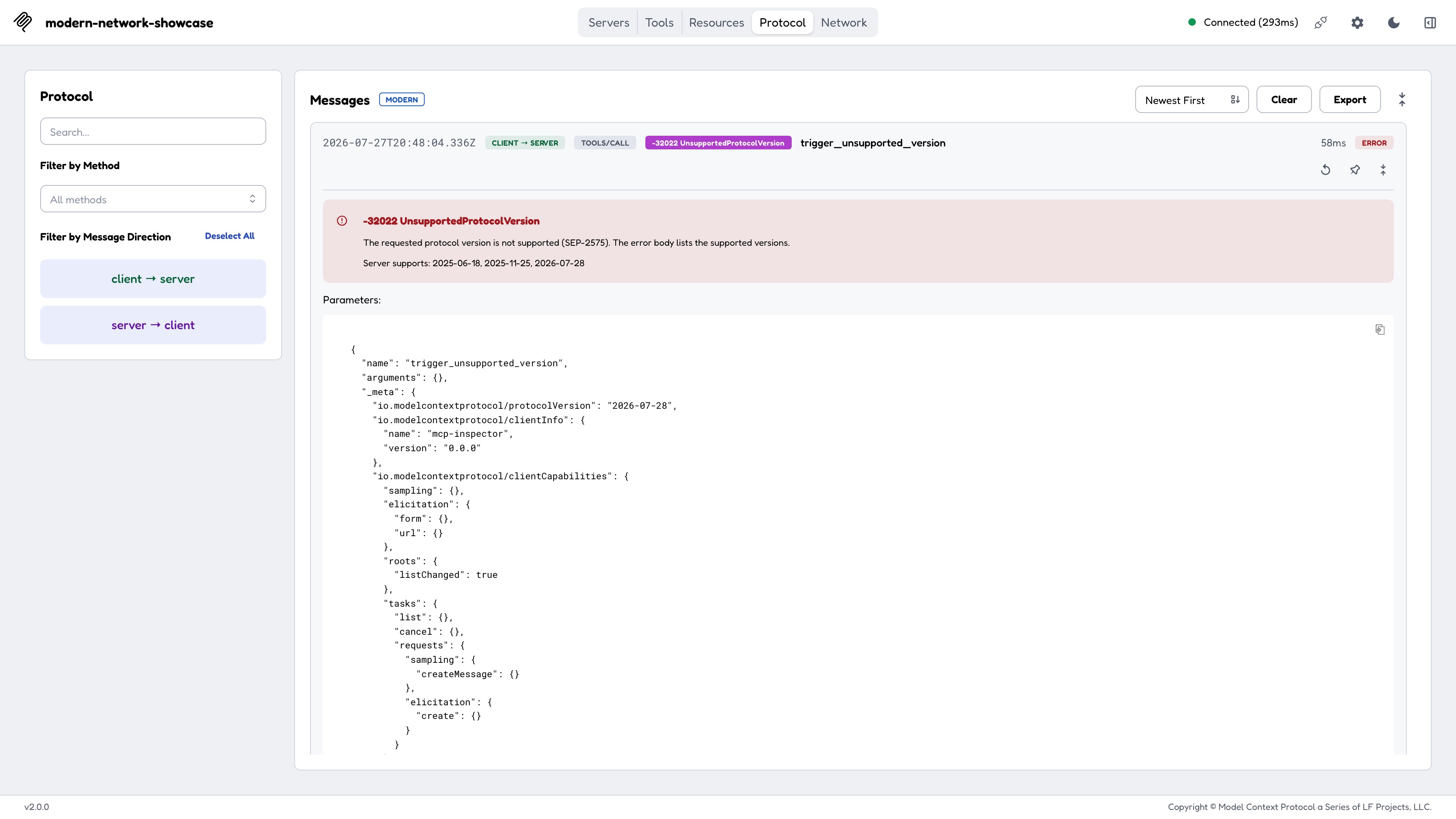

The Protocol tab renders the same failure as a typed spec error: -32022 UnsupportedProtocolVersion, with the versions the server does support.

Sessions

A legacy Streamable HTTP connection may carry a server-assigned session id (Mcp-Session-Id), which the client tears down with an HTTP DELETE. A modern connection is sessionless and per-request: with no session id the client SDK sends no DELETE to the server, so disconnect is purely local. This has a practical consequence for your own test servers. A stateless modern handler constructed per request cannot hold state between calls, which is why test-servers/configs/subscriptions-modern-http.json, unlike its legacy counterpart, omits an update_resource tool: the mutation would run against a throwaway server instance and be invisible to the next read.
